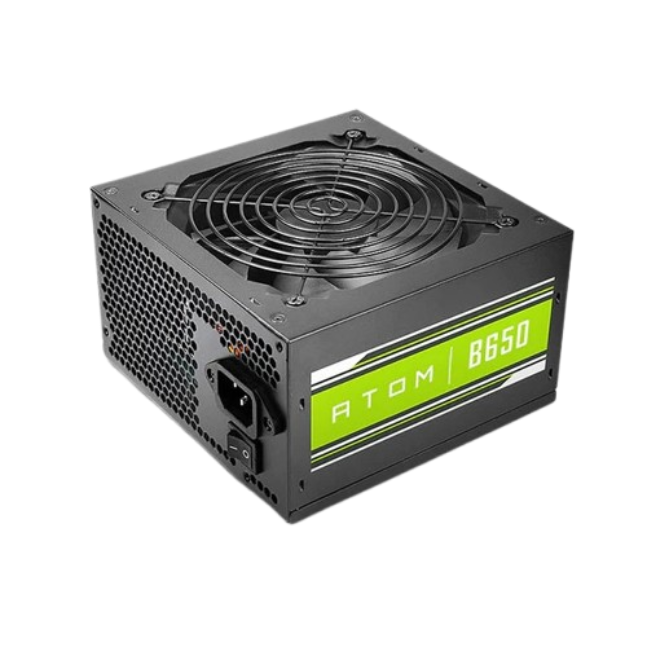

PSU ANTEC ATOM 650w 80+BRONZE

Antec Atom B650 (650W) Technical Specifications

• Brand: Antec

• Series: ATOM

• Model: ATOM B650

• Type: ATX 12V

• Maximum Power: 650 Watts

• Efficiency Certification: 80 Plus Bronze

• Efficiency: Up to 85% typically

• Input Voltage: 200VAC – 240VAC

• Input Current: 6.3A

• Input Frequency Range: 50Hz – 60Hz

• PFC: Active PFC (Power Factor Correction)

• Fan Size: 120 mm Silent Fan

• Cable Type: Flat Black Cables (Non-Modular)

• Protections (CircuitShield™):

  • OVP (Over Voltage Protection)

  • UVP (Under Voltage Protection)

  • SCP (Short Circuit Protection)

  • OPP (Over Power Protection)

• Dimensions (W x L x H): 150 mm x 140 mm x 86 mm

• Warranty: 3 Years (Garantie 3 Ans)

Connector Configuration:

• 1 x 24-Pin Main Connector

• 1 x 8(4+4) Pin EPS 12V (CPU)

• 2 x 8(6+2) Pin PCI-E (GPU)

• 5 x SATA Connectors

• 3 x Molex Connectors
