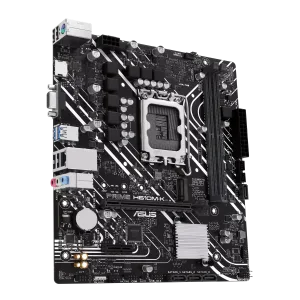

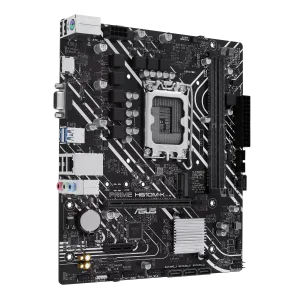

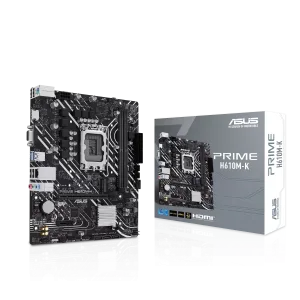

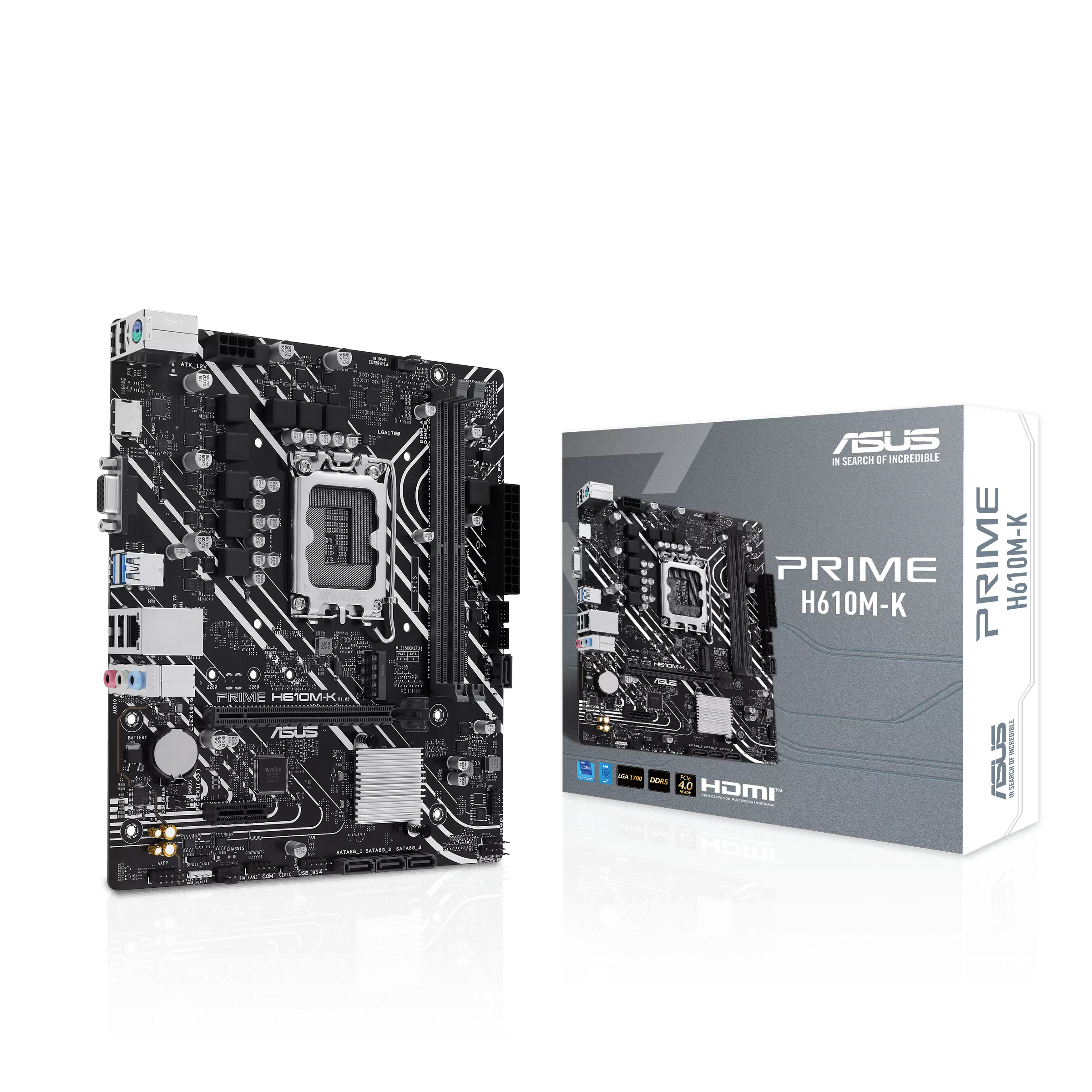

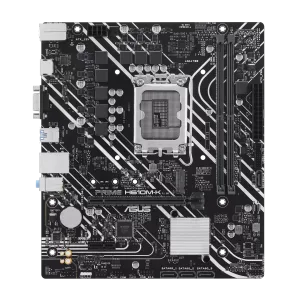

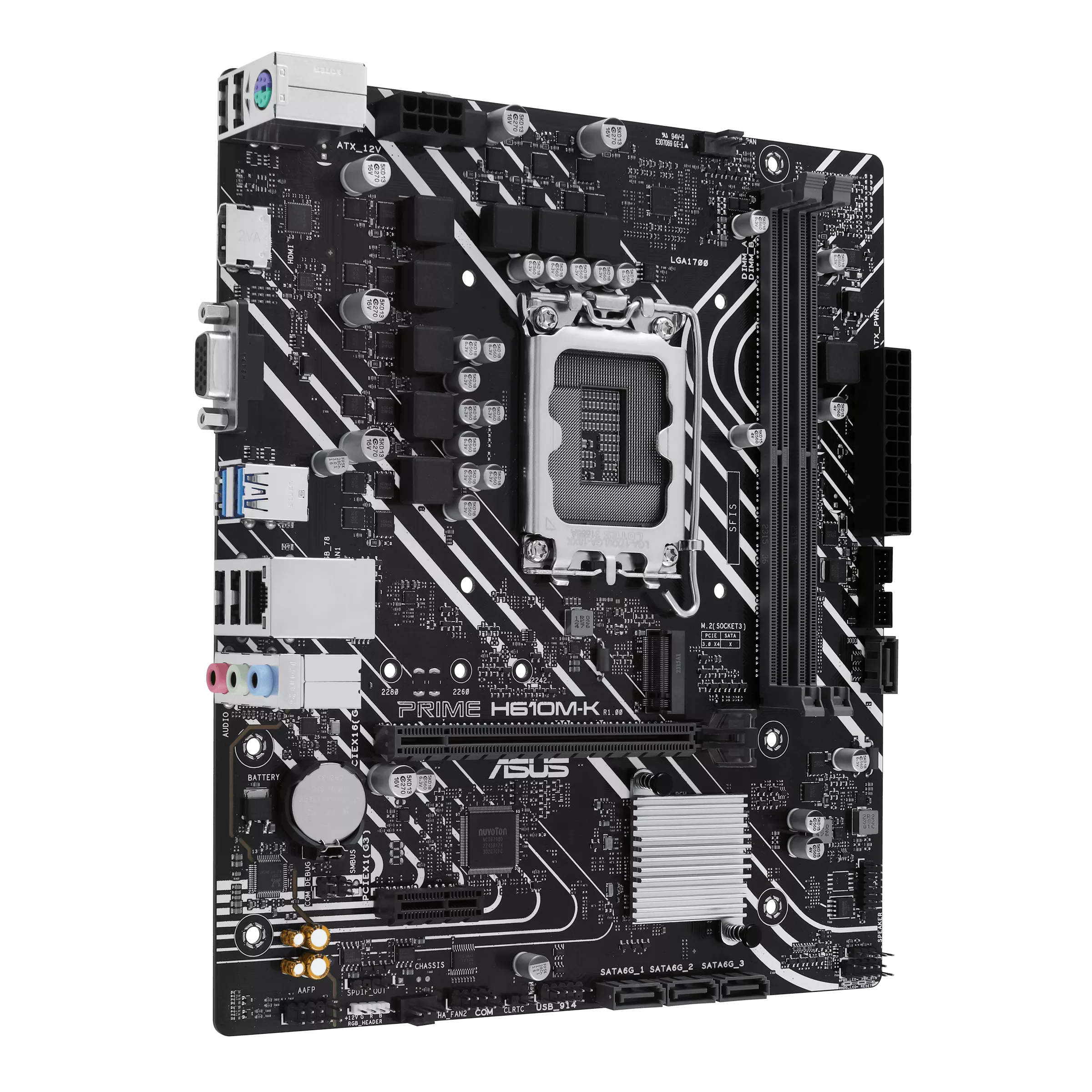

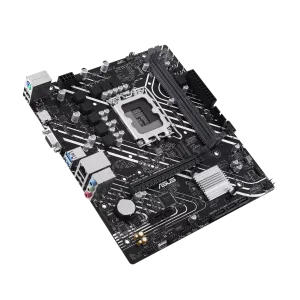

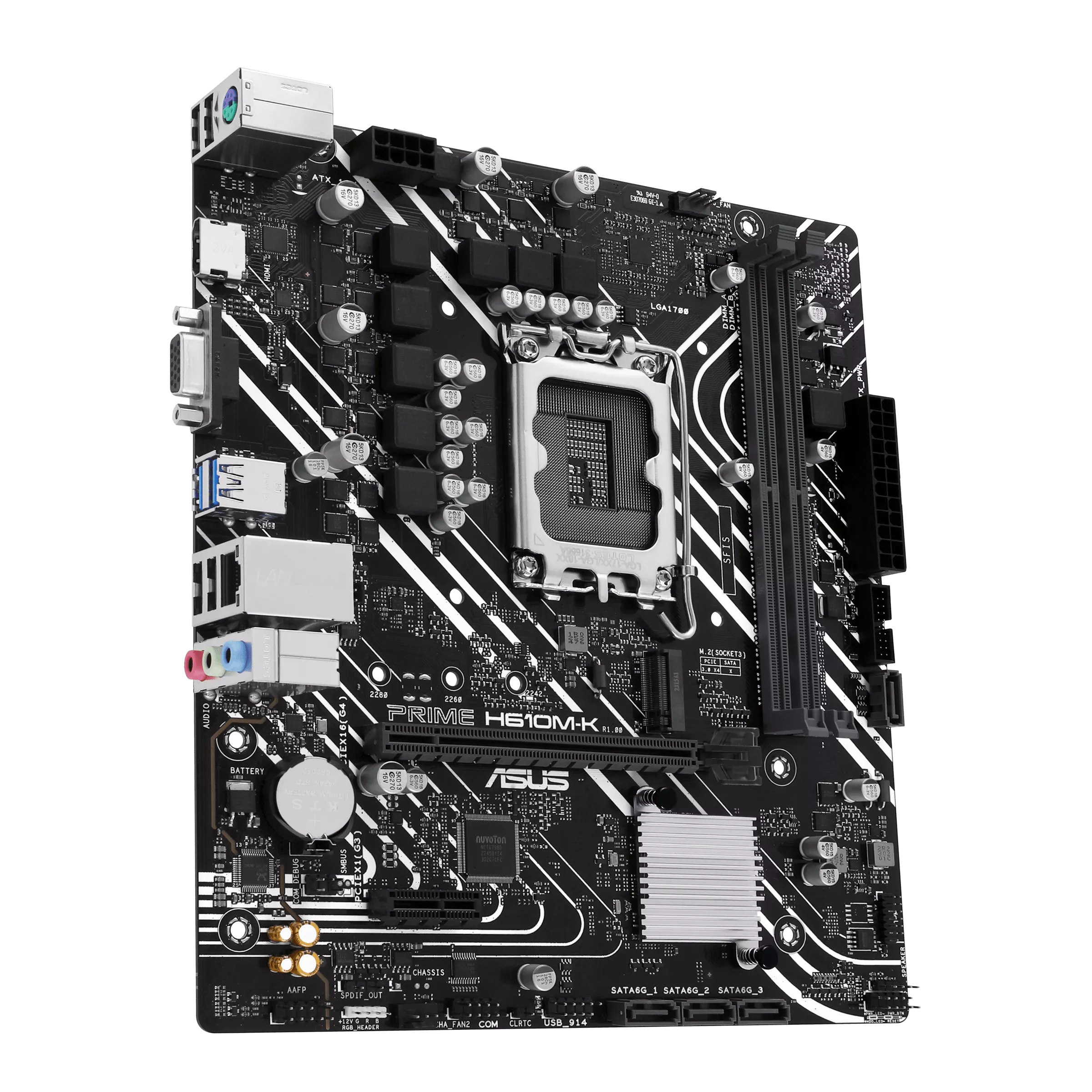

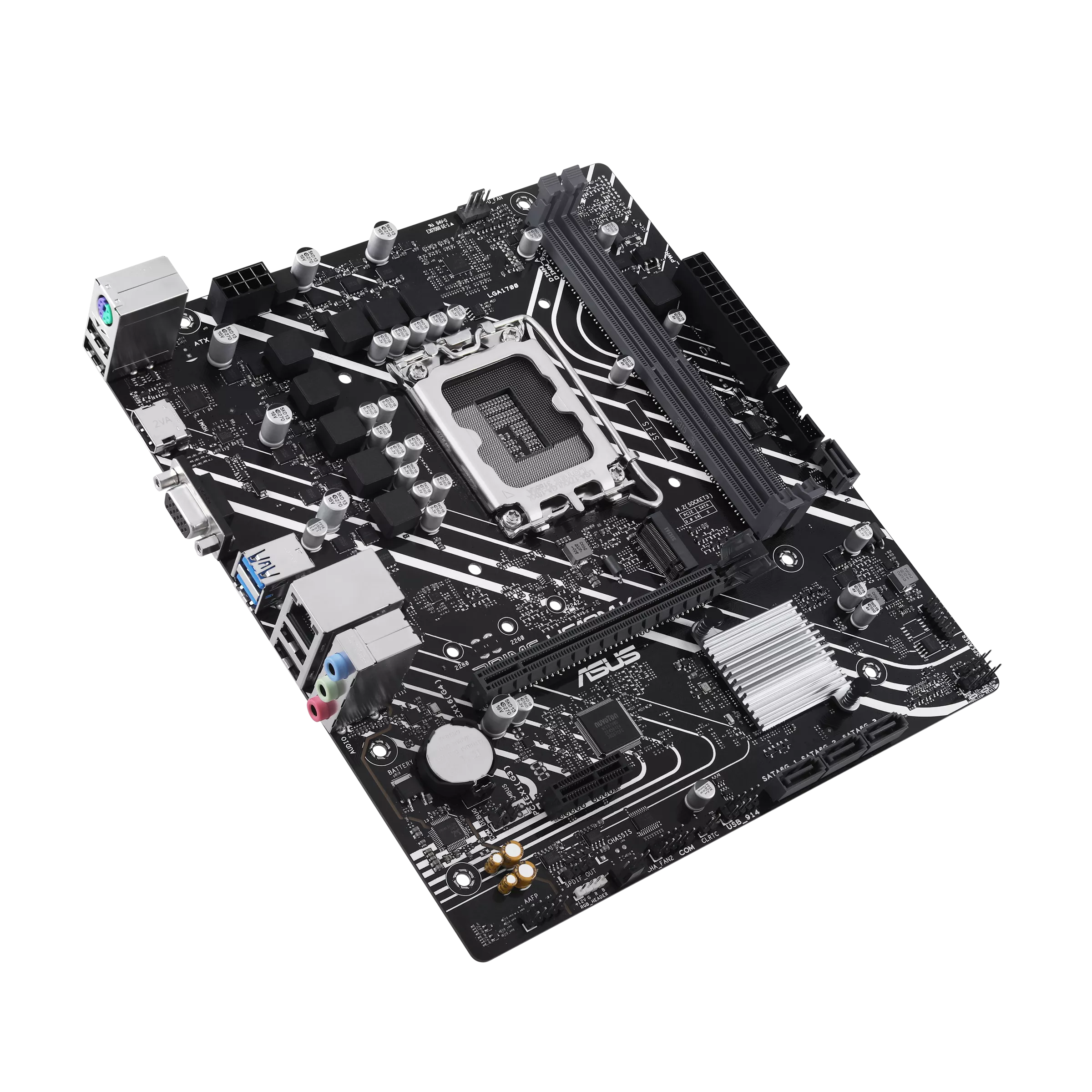

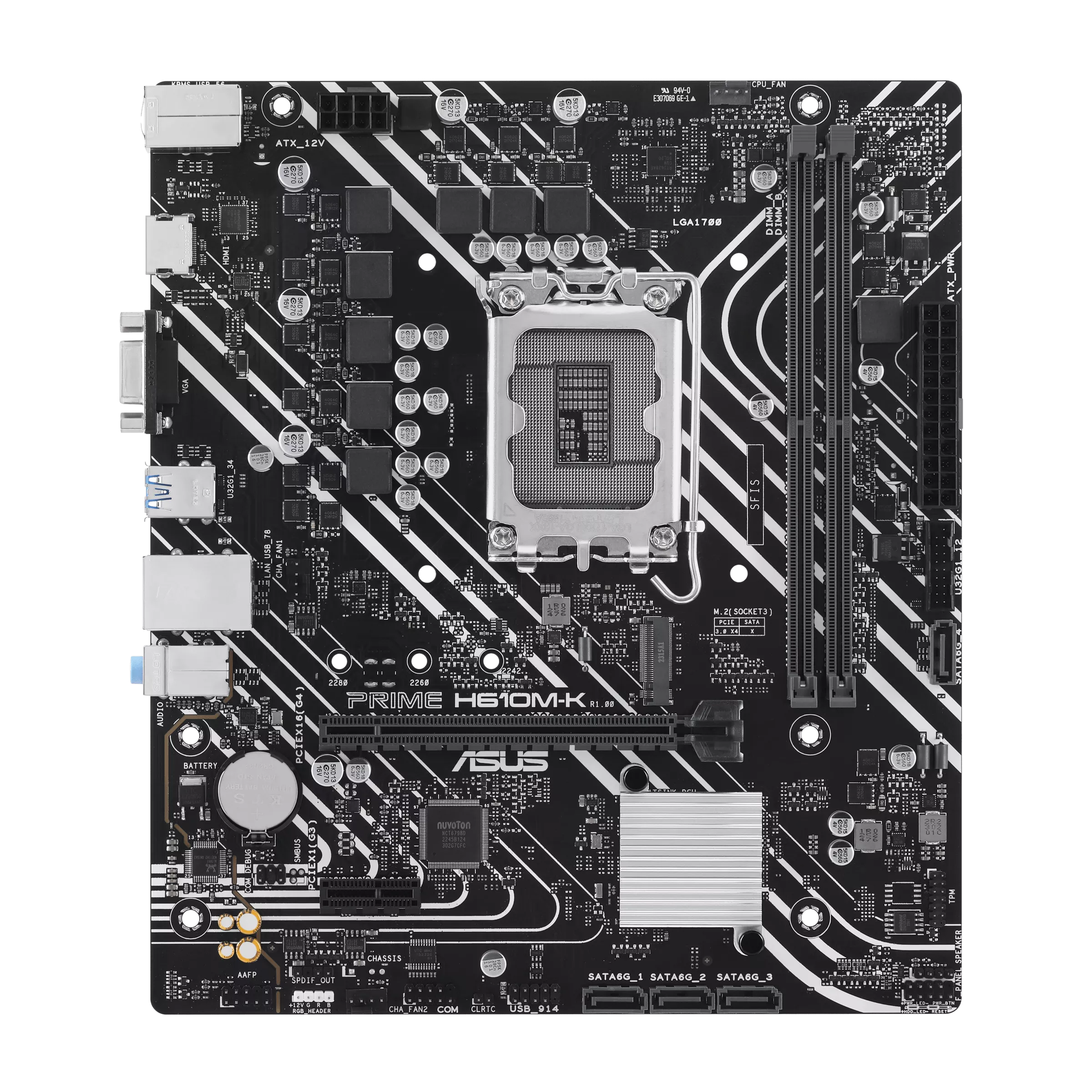

H610M-K ASUS PRIME DDR5

ASUS PRIME H610M-K DDR5 Technical Specifications

• Chipset: Intel H610

• Form Factor: Micro-ATX (23.4 cm x 20.3 cm)

• Socket: Intel LGA1700

• CPU Support: * Supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron Processors.

  • Compatible with Intel Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0.

• Memory: * 2 x DIMM Slots, Dual Channel DDR5.

  • Supports up to 96GB Max Capacity.

  • Supports speeds up to DDR5 5600/5400/5200/5000/4800 MHz.

  • Supports Intel Extreme Memory Profile (XMP).

• Expansion Slots: * 1 x PCIe 4.0 x16 Slot (SafeSlot Core).

  • 1 x PCIe 3.0 x1 Slot.

• Storage: * 1 x M.2 Slot (Key M): Supports PCIe 3.0 x4 mode (Type 2242/2260/2280).

  • 4 x SATA 6Gb/s Ports.

• Graphics Output: * 1 x HDMI 2.1 (Supports 4K @60Hz).

  • 1 x D-Sub (VGA) for legacy monitor support.

• Ethernet: 1 x Realtek 1Gb Ethernet.

• Audio: Realtek 7.1 Surround Sound High Definition Audio.

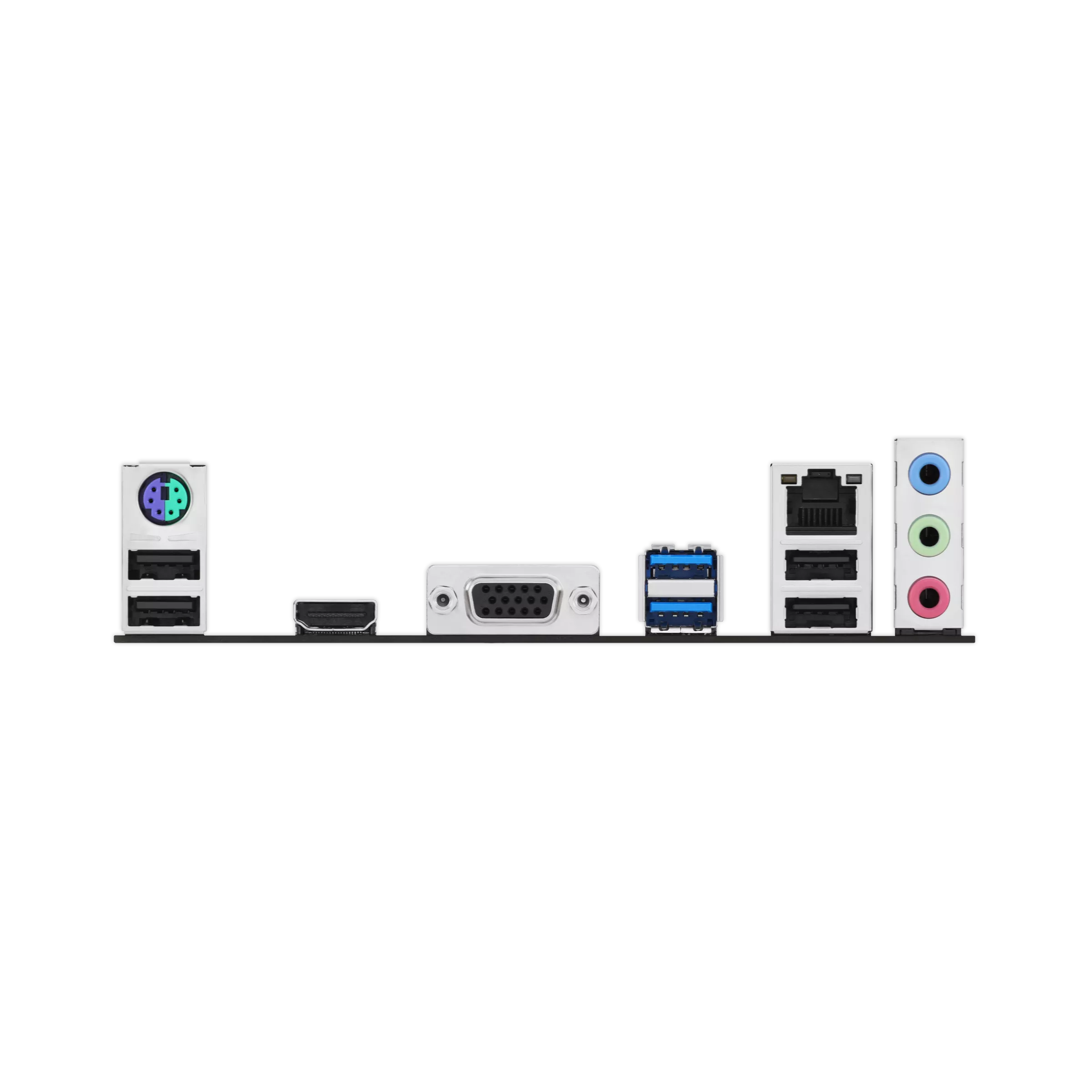

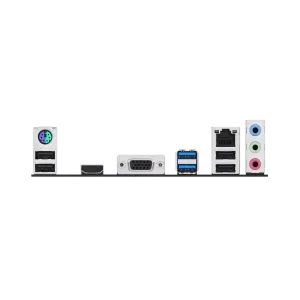

• Rear I/O Panel:

  • 2 x USB 3.2 Gen 1 (5G) Type-A.

  • 4 x USB 2.0 Type-A.

  • 1 x PS/2 Keyboard/Mouse combo port.

  • 3 x Audio Jacks.

• Internal Headers: * 1 x USB 3.2 Gen 1 (supports 2 additional ports).

  • 1 x USB 2.0 (supports 2 additional ports).

  • 1 x RGB Header.
