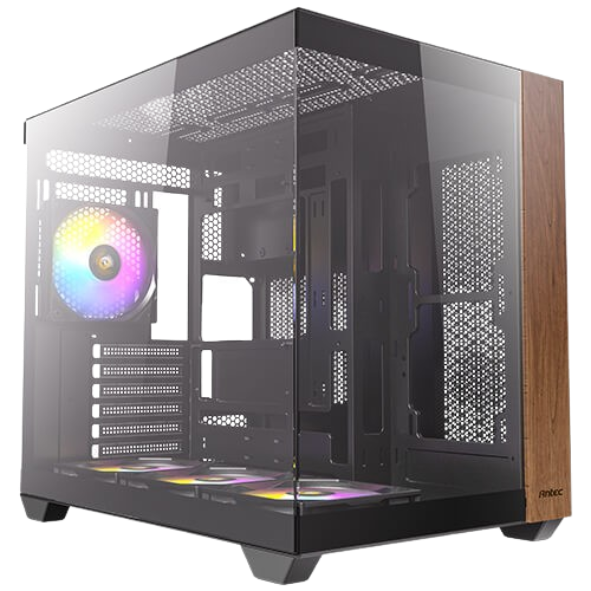

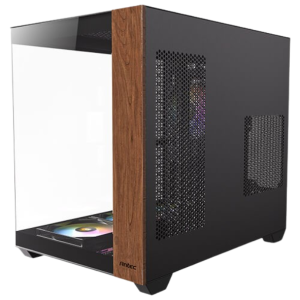

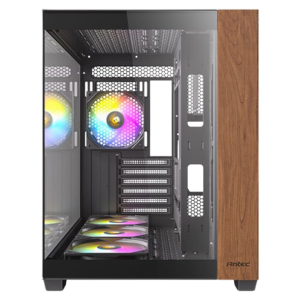

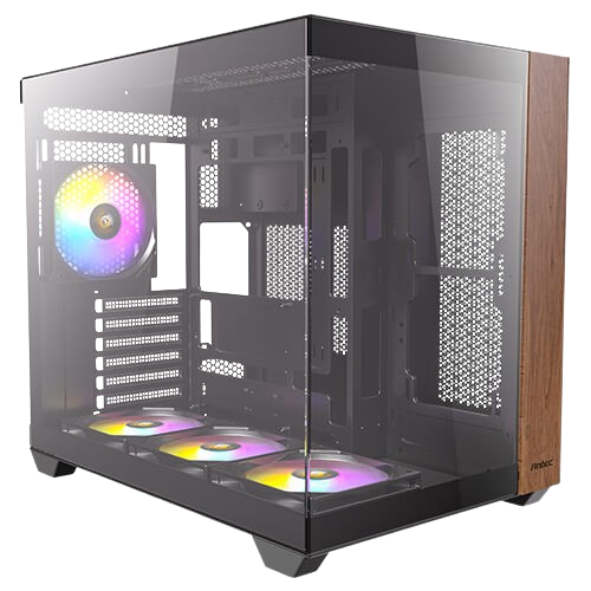

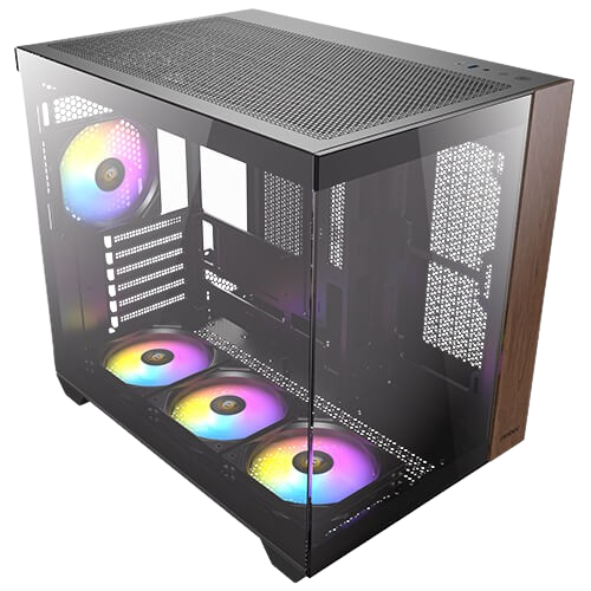

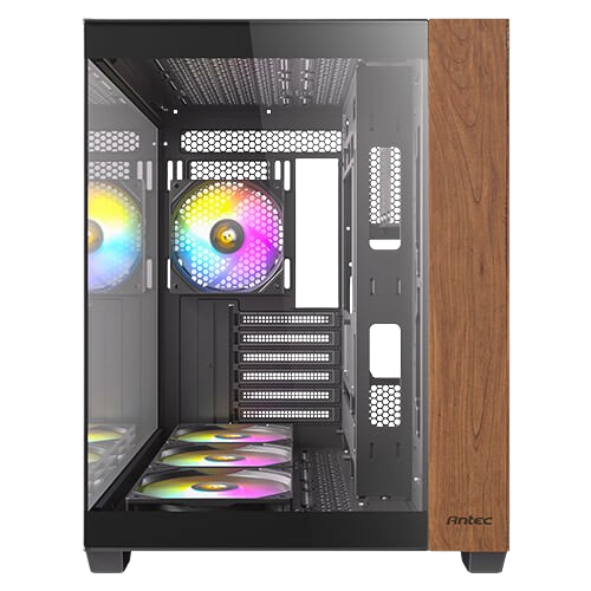

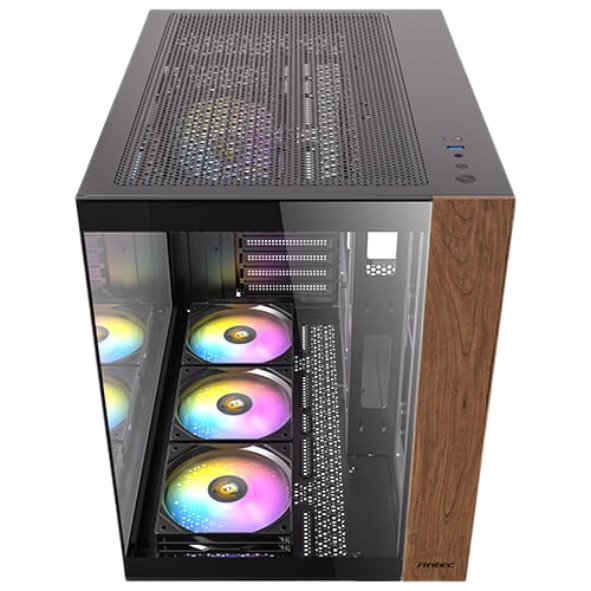

Boitier CX800 Wood ARGB

📏 Physical Dimensions & Materials

• Dimensions (D × W × H): 435 × 302 × 390 mm

• Form Factor: Mid Tower

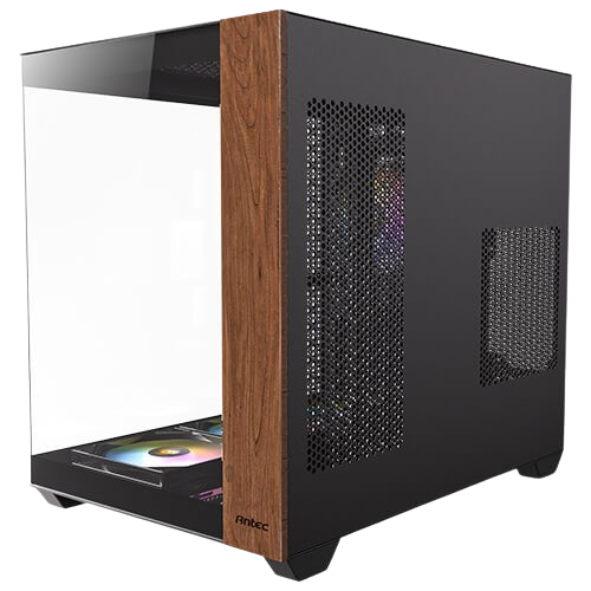

• Materials: Steel + Tempered Glass + Wood Front Panel

• Net Weight: ~6.3 kg

• Gross Weight: ~7.8 kg

🧠 Motherboard & Expansion

• Motherboard Support: ATX / Micro-ATX / ITX

• Expansion Slots: 6

• Drive Bays:

  • 2 × 3.5″ HDD

  • 2 × 2.5″ SSD

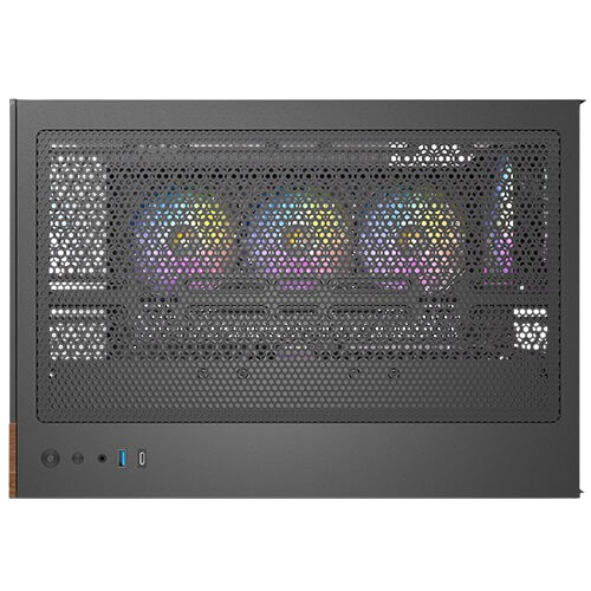

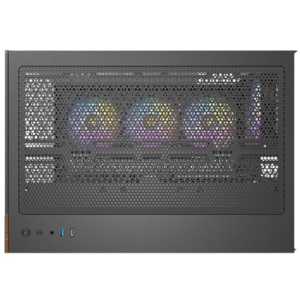

🔌 Front I/O & Controls

• Front Panel Ports:

  • Power Button

  • LED Control Button

  • 1 × USB 3.0 Type-A

  • 1 × USB Type-C 5 Gbps

  • Headphone/Mic Combo Jack

🌀 Cooling & Fans

🔧 Included Fans

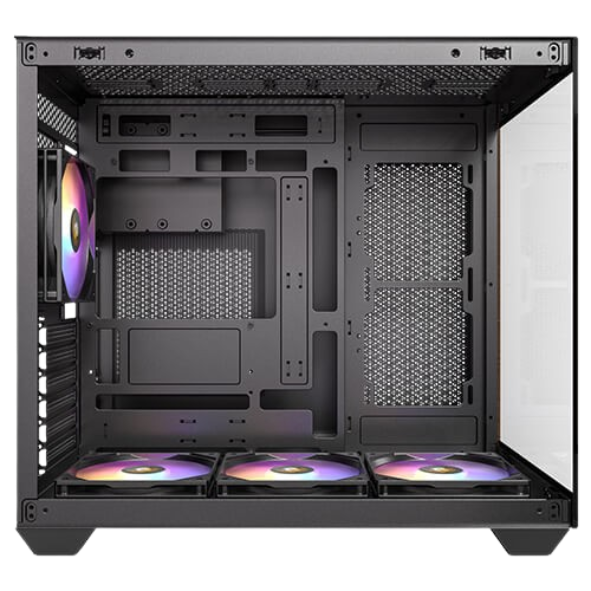

• 3 × 120 mm ARGB reverse fans (bottom)

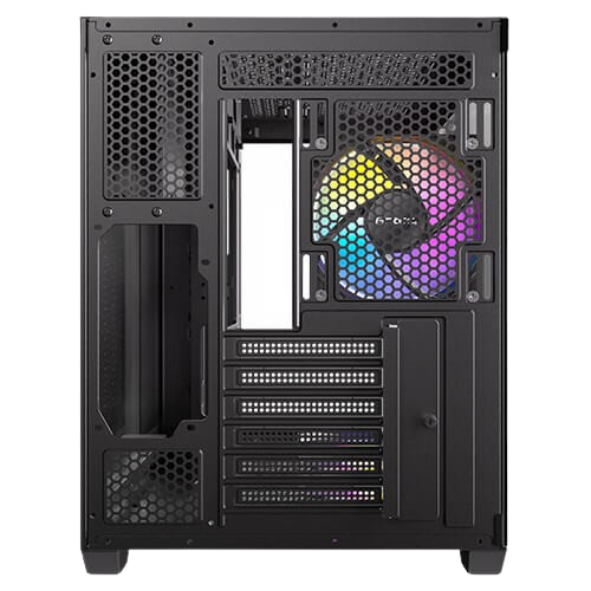

• 1 × 120 mm ARGB fan (rear)

📍 Fan Mounting Support

• Top: 3 × 120 mm / 2 × 140 mm

• Side: 2 × 120 mm

• Bottom: 3 × 120 mm / 2 × 140 mm

• Rear: 1 × 120 mm / 1 × 140 mm

🌊 Radiator Support

• Top: 120 / 140 / 240 / 280 / 360 mm

• Side: 120 / 240 mm

• Bottom: 120 / 140 / 240 / 280 / 360 mm

• Rear: 120 mm

🧩 Component Clearance

• Max GPU Length: ≤ 410 mm

• Max CPU Cooler Height: ≤ 175 mm

• Max PSU Length (with cables): ≤ 225 mm

🧼 Additional Features

• 270° panoramic tempered glass panels for expansive internal visibility

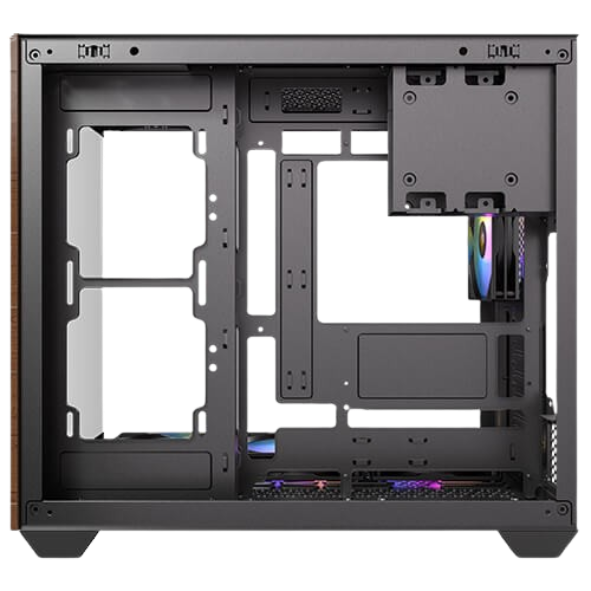

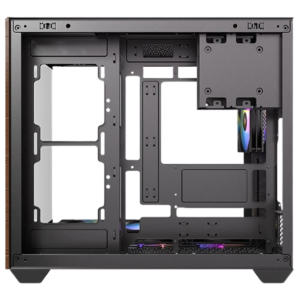

• Dual-chamber interior design for optimized airflow separation between GPU/CPU and PSU/drives

• Dust filters on top, right side, and bottom

• ARGB lighting with control via LED button
