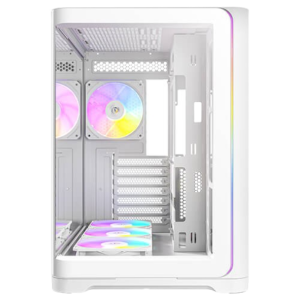

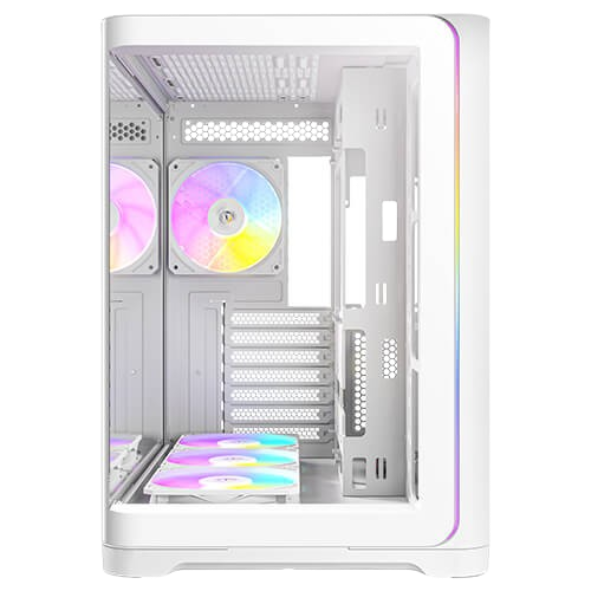

Boitier C5 Curve WHITE

📏 Physical Dimensions & Materials

• Dimensions (D × W × H): 465 × 285 × 400 mm

• Materials: Steel + Plastic + 4 mm Tempered Glass

• Net Weight: ~7.3 kg

• Gross Weight: ~8.8 kg

🧠 Motherboard & Expansion

• Motherboard Support: ATX / Micro-ATX / ITX

• Expansion Slots: 7

• Drive Bays:

  • 1 × 3.5″

  • 2 × 2.5″

🔌 Front I/O & Controls

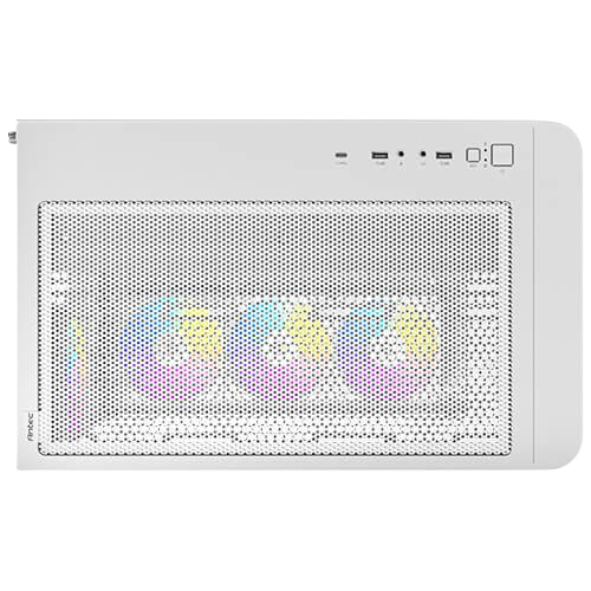

• Front I/O Ports:

  • 2 × USB 3.0 Type-A

  • 1 × USB Type-C 3.2 Gen 2

  • HD-Audio (Headphone/Mic)

  • Power Button + LED Control Button

🌀 Cooling & Fan Support

🔧 Included Fans

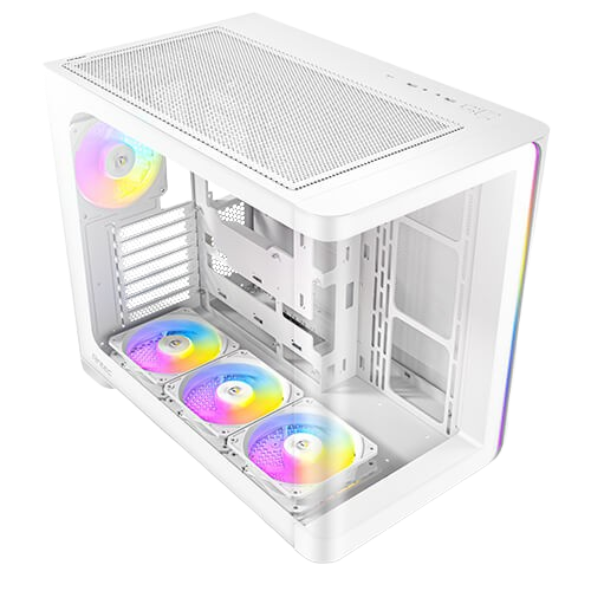

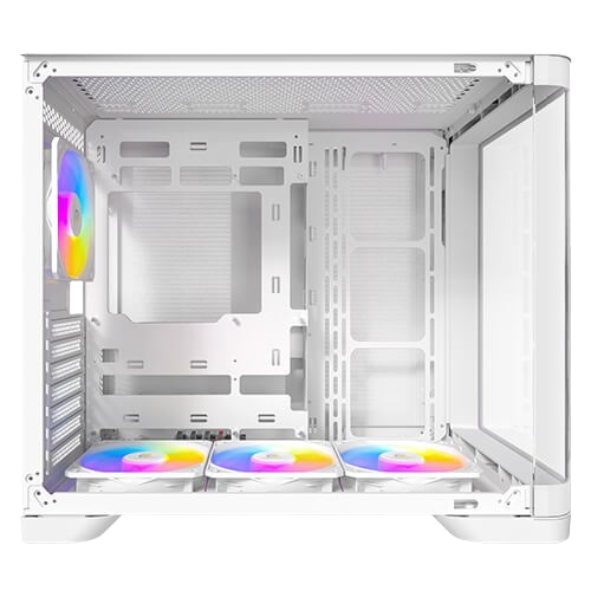

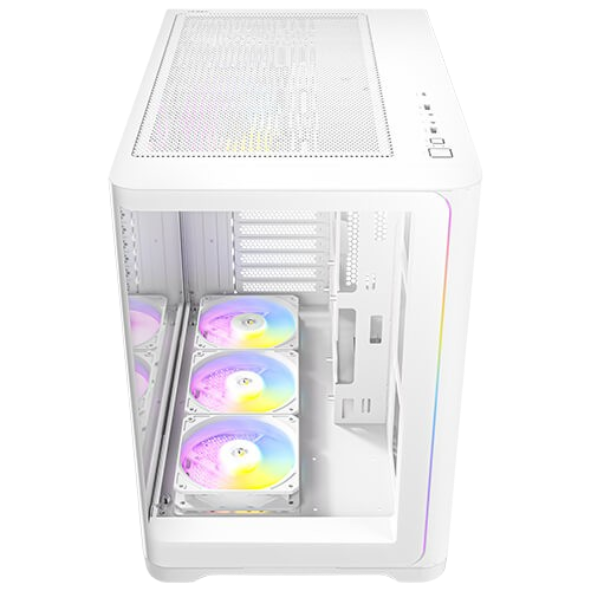

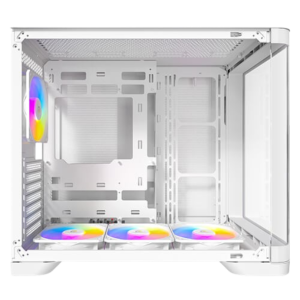

• 3 × 120 mm P12 PWM ARGB reverse fans (bottom)

• 1 × 120 mm P12 PWM ARGB fan (rear)

📍 Fan Mounts

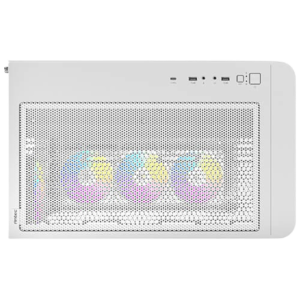

• Top: 3 × 120 mm / 2 × 140 mm

• Right Side: 3 × 120 mm / 2 × 140 mm

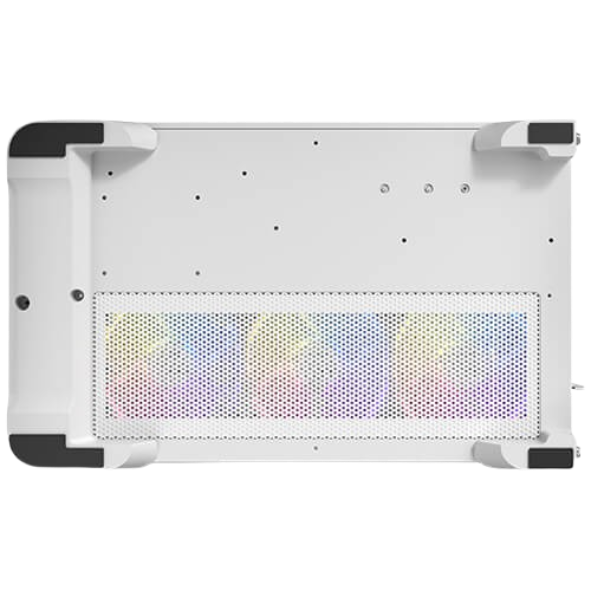

• Bottom: 3 × 120 mm

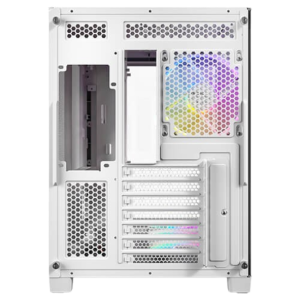

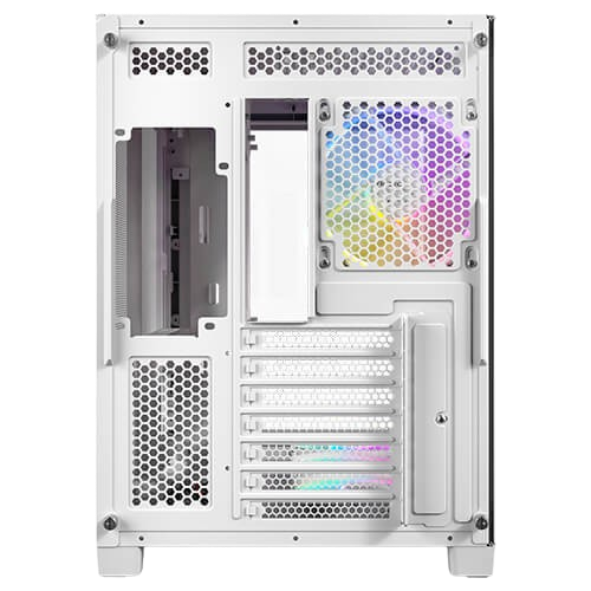

• Rear: 1 × 120 mm

🌡️ Radiator Support

• Top: 120 / 140 / 240 / 280 / 360 mm

• Right Side: 120 / 140 / 240 / 280 mm

• Bottom: 120 / 240 / 360 mm

• Rear: 120 mm

🧩 Component Clearance

• Max GPU Length: ≤ 410 mm

• Max CPU Cooler Height: ≤ 160 mm

• Max PSU Length (with cables): ≤ 240 mm

🧼 Additional Features

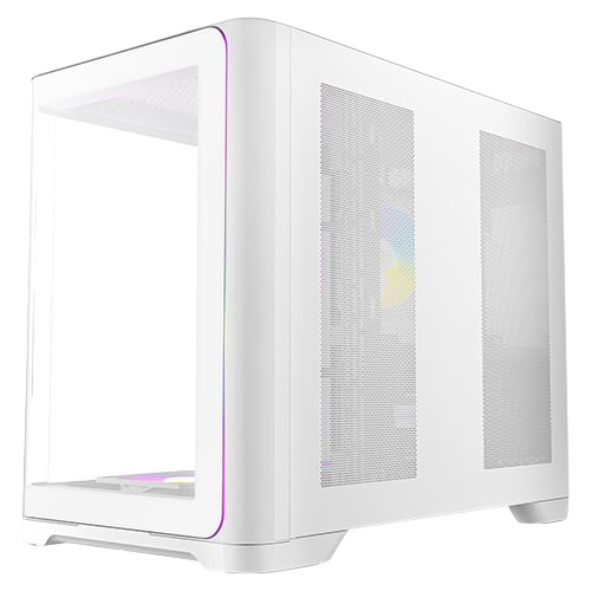

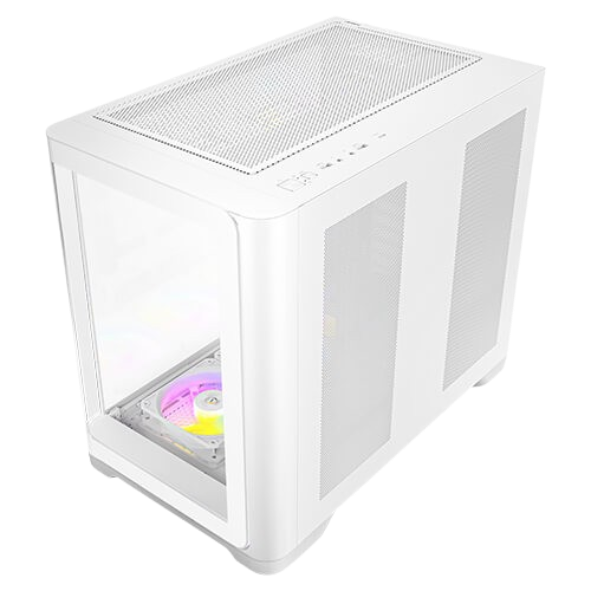

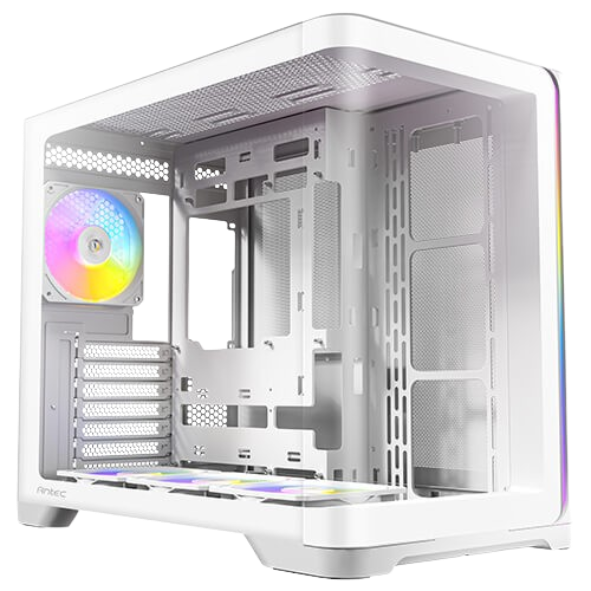

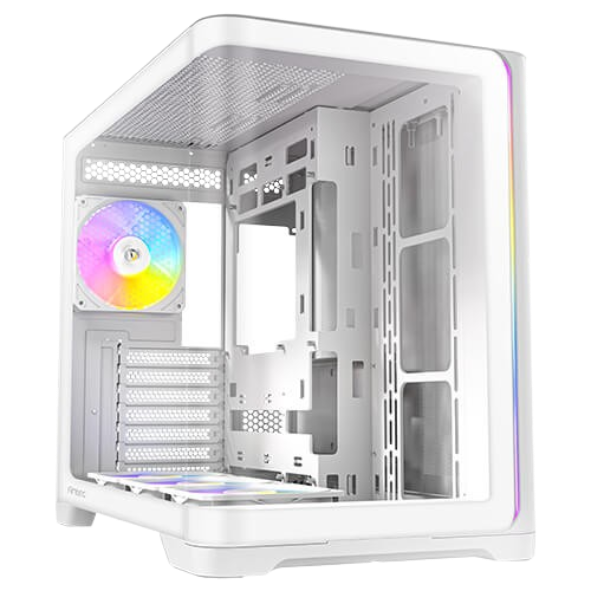

• Curved tempered glass panels (front & side) for panoramic internal visibility

• Magnetic dust filters (top & bottom) for easy cleaning

• Wired ARGB lighting control via LED button
