RTX 5060 8G GDDR7 MSI SHADOW 2X OC

⚙️ Core Specifications

• CUDA® Cores: 3840

• Core Clock:

  • Boost: 2527 MHz

  • Extreme Performance: 2535 MHz (via MSI Center)

• Memory Size: 8GB

• Memory Type: GDDR7

• Memory Speed: 28 Gbps

• Memory Bus: 128-bit

🎮 Display & Output

• Maximum Resolution: 7680 × 4320 (8K)

• Maximum Displays: 4

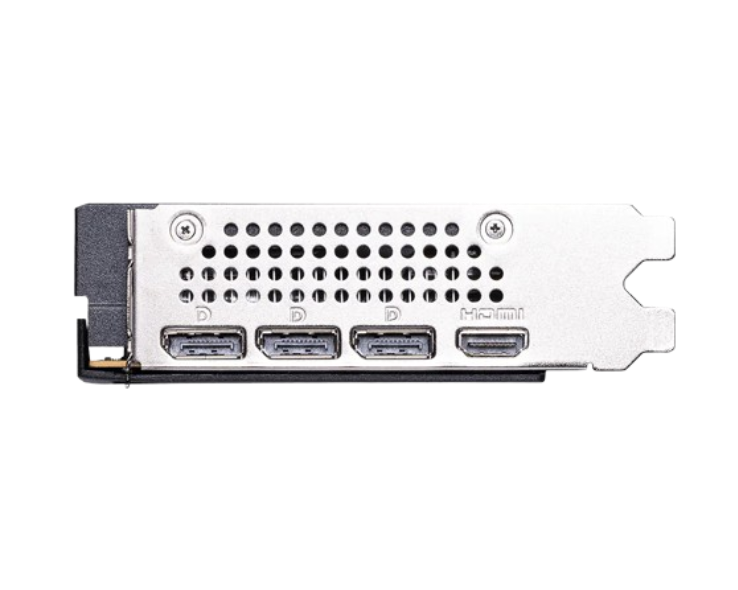

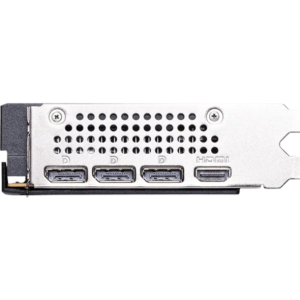

• Output Ports:

  • 3 × DisplayPort 2.1b

  • 1 × HDMI™ 2.1b (up to 4K 480Hz / 8K 120Hz with DSC)

• HDCP Support: Yes

❄️ Cooling & Design

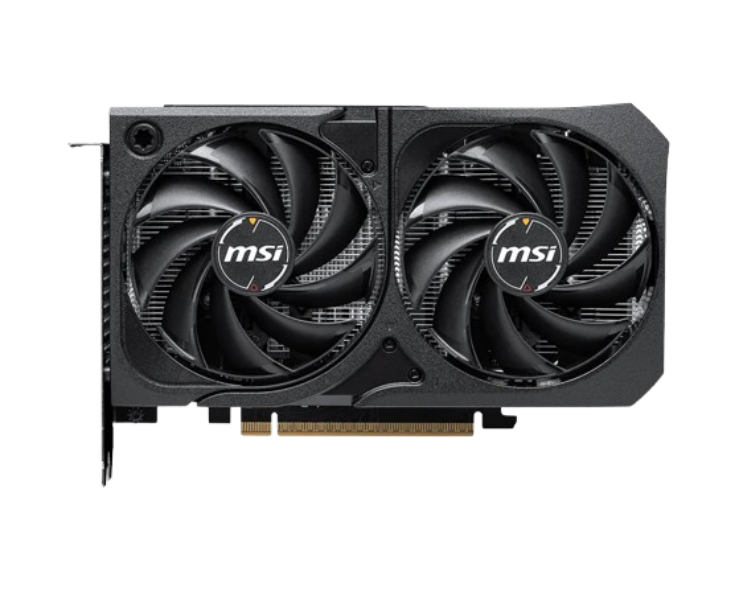

• Cooling Solution: Dual-Fan Design

• Fan Technology: TORX Fan 5.0

• Thermal Features: Heat Pipes, MSI Zero Frozr Technology

• Card Design: SHADOW 2X (compact dual-slot form)

🔌 Power & Requirements

• Power Consumption: 145 W

• Power Connector: 1 × 8-pin

• Recommended PSU: 550 W

📐 Physical Dimensions

• Card Length: 197 mm

• Width: 40 mm

• Height: 120 mm

• Weight: ~493 g

🧠 Supported Technologies

• NVIDIA DLSS 4

• NVIDIA Reflex 2

• 4th-Gen Ray Tracing Cores

• 5th-Gen Tensor Cores

• NVIDIA G-SYNC®

• DirectX® 12 Ultimate

• OpenGL® 4.6

• NVIDIA Studio & Broadcast

📦 Package Contents

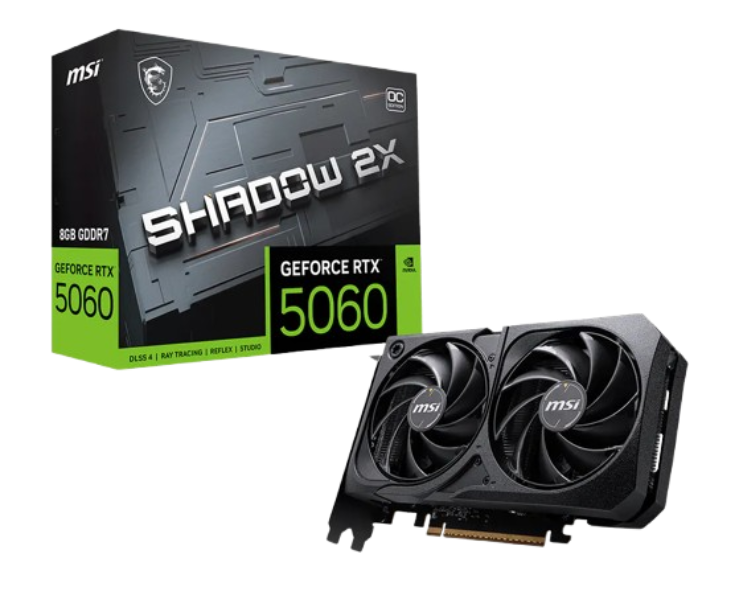

• MSI GeForce RTX™ 5060 8G SHADOW 2X OC Graphics Card

• User Documentation
