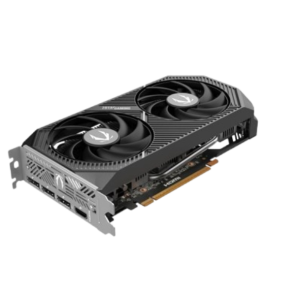

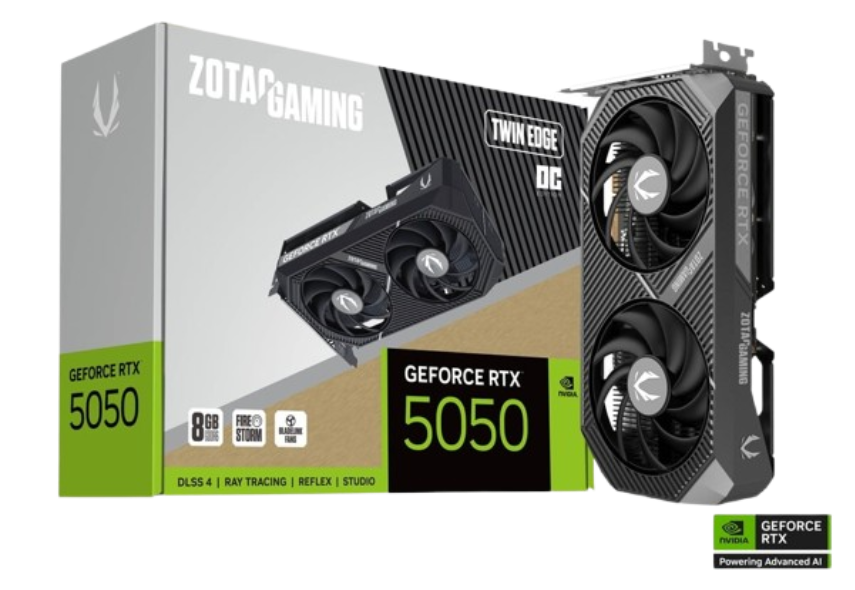

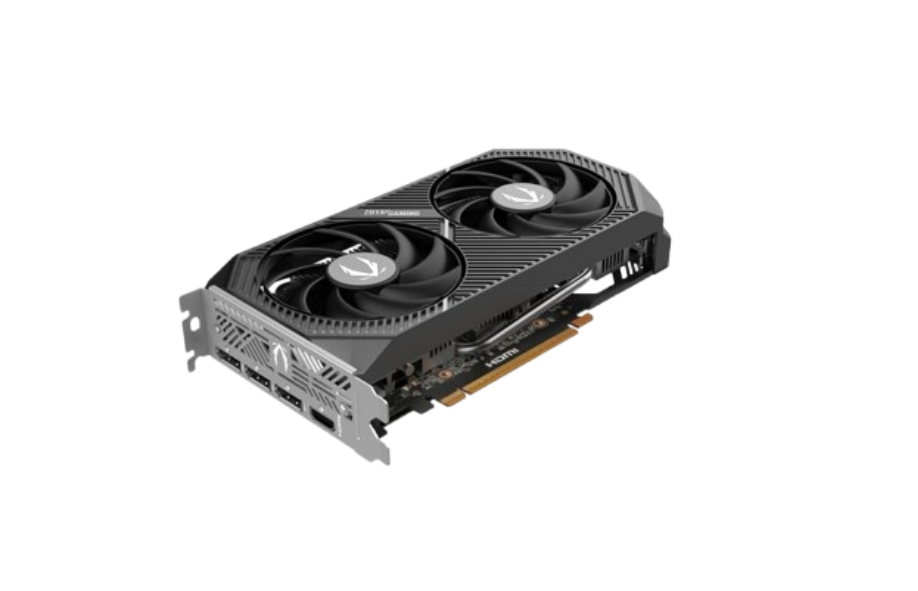

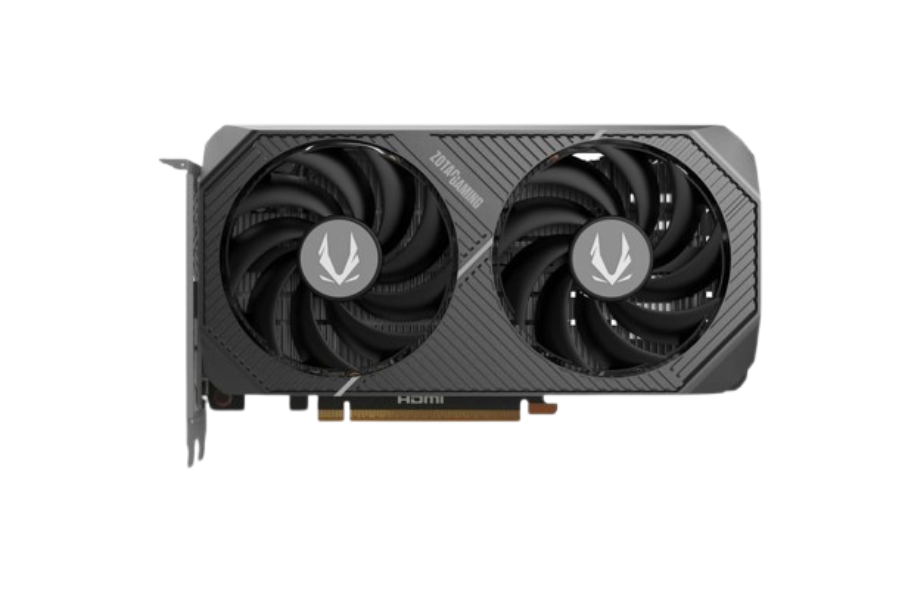

RTX 5050 8GB GDDR6 ZOTAC Twin Edge OC

🧠 GPU & Performance

• GPU: NVIDIA® GeForce RTX™ 5050

• Architecture: NVIDIA Blackwell

• CUDA Cores: 2560

• Engine Clock: 2602 MHz (Boost)

• Memory: 8 GB GDDR6

• Memory Bus: 128-bit

• Memory Clock: 20 Gbps effective

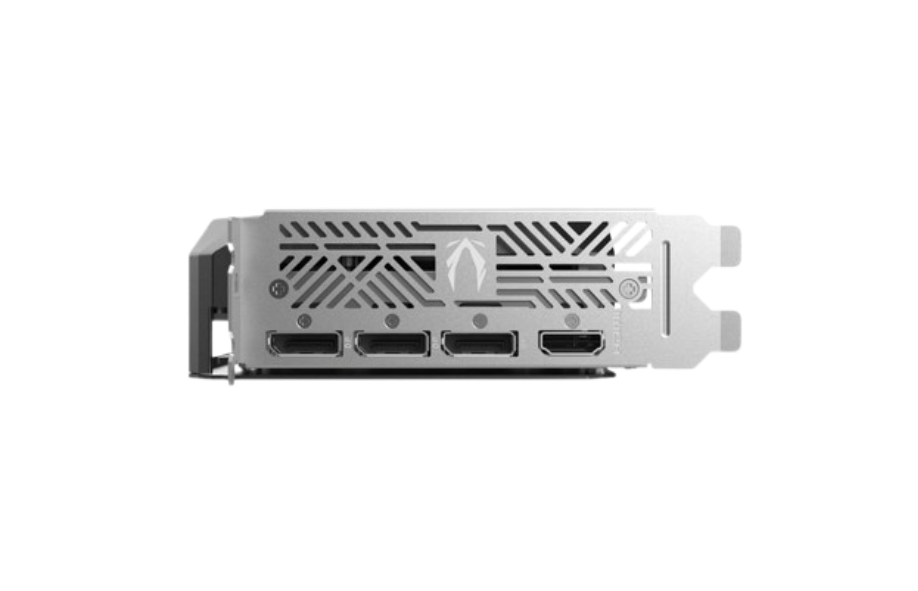

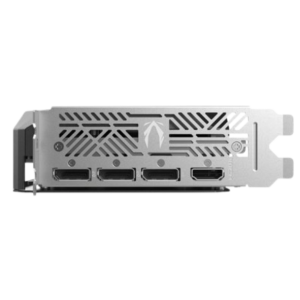

📺 Display Outputs

• 3 × DisplayPort 2.1b (UHBR20) — up to 4K @ 480 Hz / 8K @ 165 Hz with DSC

• 1 × HDMI 2.1b — supports 4K @ 120 Hz HDR, 8K @ 60 Hz HDR and VRR

• Multi-Display Capability: Up to 4 displays

• HDCP Support: HDCP 2.3

❄️ Cooling

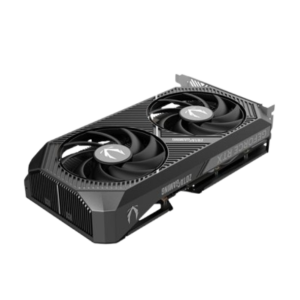

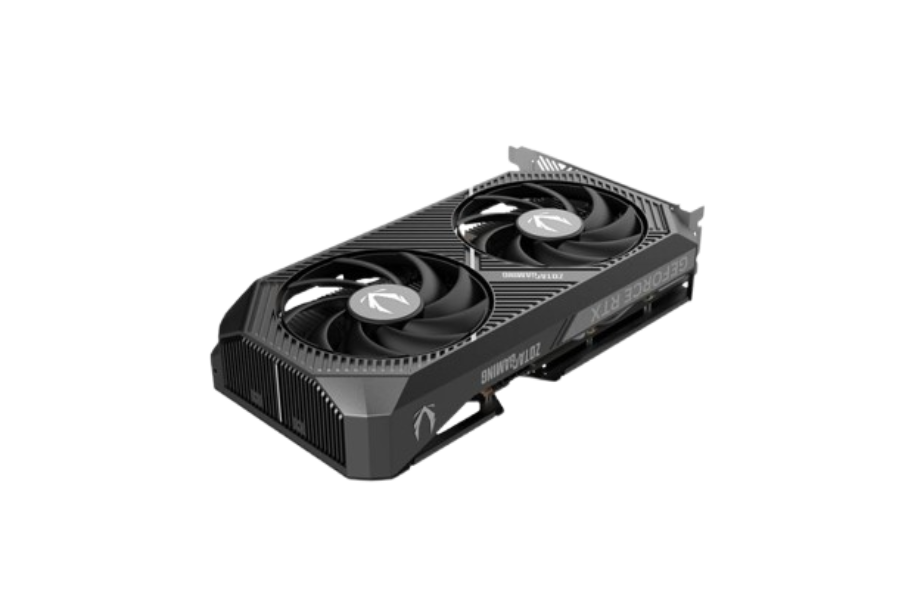

• Cooling System: Twin-fan heatsink with BladeLink fans

• Form Factor: Dual-slot

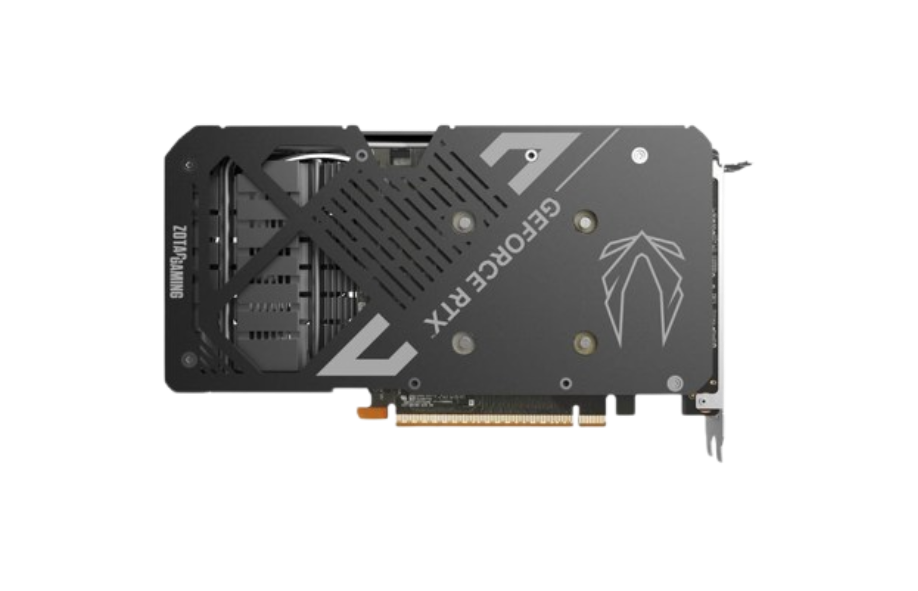

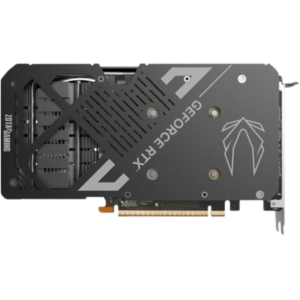

• Backplate: Metal backplate for structural rigidity and passive cooling support

⚡ Power & System Requirements

• Power Consumption (TDP): 130 W

• Power Connector: 1 × 8-pin PCIe

• Recommended PSU: 550 W or higher

• Interface: PCI Express® 5.0 x8

• DirectX Support: DirectX 12 Ultimate

• OpenGL: 4.6

📏 Physical Dimensions

• Card Length: 220.5 mm

• Width: 120.25 mm

• Height / Thickness: 41.6 mm

• Slots: Dual-slot

🪟 Operating Systems

• Supported OS:

  • Windows 11 (64-bit)

  • Windows 10 (64-bit, v1809 or later)

🧩 Features

• NVIDIA DLSS 4 & Ray Tracing support

• NVIDIA G-SYNC® compatible

• ZOTAC GAMING FireStorm Utility support

• Compact SFF-ready design
