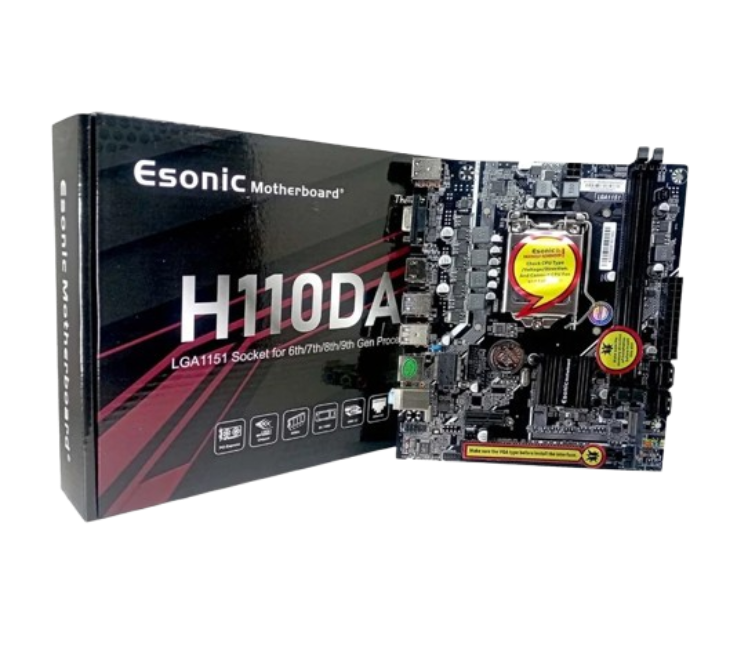

H110DA ESONIC

10.500,00 د.ج

The Esonic H110DA (often referenced as H110DA1) is an entry-to-mid-level Micro-ATX motherboard designed around Intel’s H110 chipset. It is tailored primarily for budget-conscious office setups, web-browsing rigs, or entry-level gaming builds using older generations of Intel Core processors.

Key Specifications Overview

Feature	Specification Details
Chipset	Intel® H110
CPU Socket	LGA 1151 (Supports Intel 6th, 7th, 8th, and 9th Generation Core i7 / i5 / i3, Pentium®, and Celeron® processors)
Memory (RAM)	2 x DIMM slots, Dual Channel DDR4
Storage Options	1 x M.2 NVMe Slot (supports 2260/2280 SSDs) 4 x SATA 6Gb/s Ports
Expansion Slots	1 x PCIe 3.0/2.0 x16 slot 1 x PCIe x1 slot
Display Outputs	1 x HDMI port 1 x VGA port (Supports Intel® HD Graphics integrated processors)
USB Ports	4 x USB 3.0 / 3.1 Gen 1 ports (2 rear, 2 mid-board) 6 x USB 2.0 ports (4 rear, 2 mid-board)
Audio	Realtek ALC662 Chip (6-Channel High Definition Audio)
LAN / Network	Realtek LAN Chip (100M / optional 1000M Gigabit LAN)
Form Factor	Micro-ATX (Dimensions: approx. 215mm x 170mm)
