B650M GAMING WIFI GIGABYTE

GIGABYTE B650M GAMING WIFI (Rev 1.x) Specifications

• Chipset: AMD B650

• Form Factor: Micro ATX (24.4 cm x 22.5 cm)

• Socket: AMD AM5

• CPU Support:

  • Supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors.

  • 5+2+2 Phases Digital VRM Solution for stable power delivery.

• Memory:

  • 2 x DDR5 DIMM Slots (Dual Channel).

  • Supports up to 128GB Max Capacity.

  • Supports speeds up to DDR5 7200+(OC) / 6400(OC) / 5200 / 4800 MHz.

  • Supports AMD EXPO™ and Intel® XMP memory profiles.

• Expansion Slots:

  • 1 x PCIe 4.0 x16 Slot (with PCIe EZ-Latch for easy GPU removal).

  • 1 x PCIe 3.0 x1 Slot.

• Storage:

  • 1 x M.2 Connector (PCIe 4.0 x4/x2 support).

  • 4 x SATA 6Gb/s Connectors (Supports RAID 0, 1, 10).

• Networking:

  • 2.5GbE LAN (Realtek) for high-speed wired internet.

  • Wi-Fi 802.11ac (Dual-Band) + Bluetooth 4.2.

• Graphics Output:

  • 1 x HDMI 2.1 (Supports 4K @60Hz).

  • 1 x D-Sub (VGA) for legacy display support.

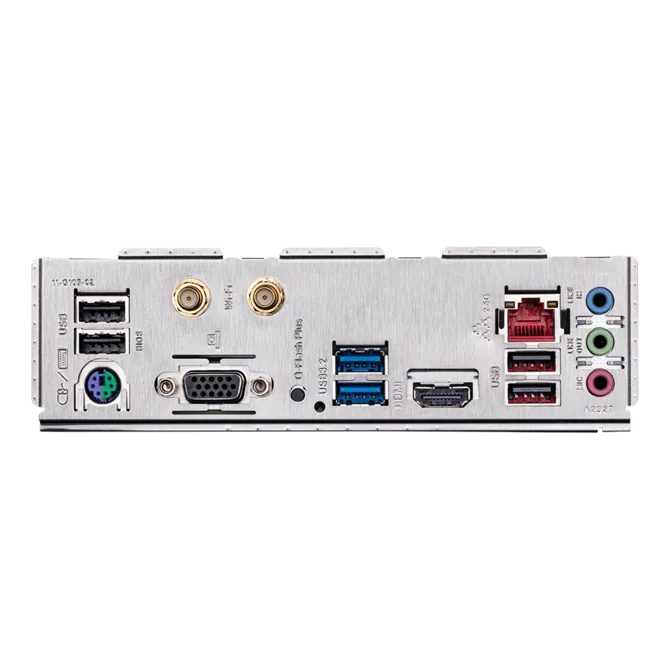

• Rear I/O Panel:

  • 1 x Q-Flash Plus Button (Update BIOS without CPU/RAM).

  • 2 x USB 3.2 Gen 1 Ports.

  • 4 x USB 2.0/1.1 Ports.

  • 1 x PS/2 Keyboard/Mouse Port.

  • 1 x RJ-45 LAN Port.

  • 2 x SMA Antenna Connectors (1T1R).

  • 3 x Audio Jacks.
