B550M-HDV ASRock

ASRock B550M-HDV Technical Specifications

• Chipset: AMD B550

• Form Factor: Micro ATX (23.0 cm x 20.1 cm)

• Socket: AMD AM4

• CPU Support:

  • Supports AMD Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000, and 5000 G-Series Desktop Processors.

  • Note: Not compatible with AMD Athlon™ processors.

• Memory:

  • 2 x DDR4 DIMM Slots (Dual Channel).

  • Supports up to 64GB Max Capacity.

  • Supports speeds up to DDR4 4733+(OC) (depending on CPU).

• Expansion Slots:

  • 1 x PCIe 4.0 x16 Slot (with Matisse/Vermeer CPUs).

  • 1 x PCIe 3.0 x1 Slot.

• Storage:

  • 1 x Hyper M.2 Socket: Supports M.2 SATA3 & PCIe Gen4 x4 (64 Gb/s).

  • 4 x SATA3 6.0 Gb/s Connectors (Supports RAID 0, 1, 10).

• Graphics Output:

  • Triple Monitor Support: HDMI 2.1 (4K @60Hz), DVI-D, and D-Sub (VGA).

• Audio: 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec).

• LAN: Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8111H).

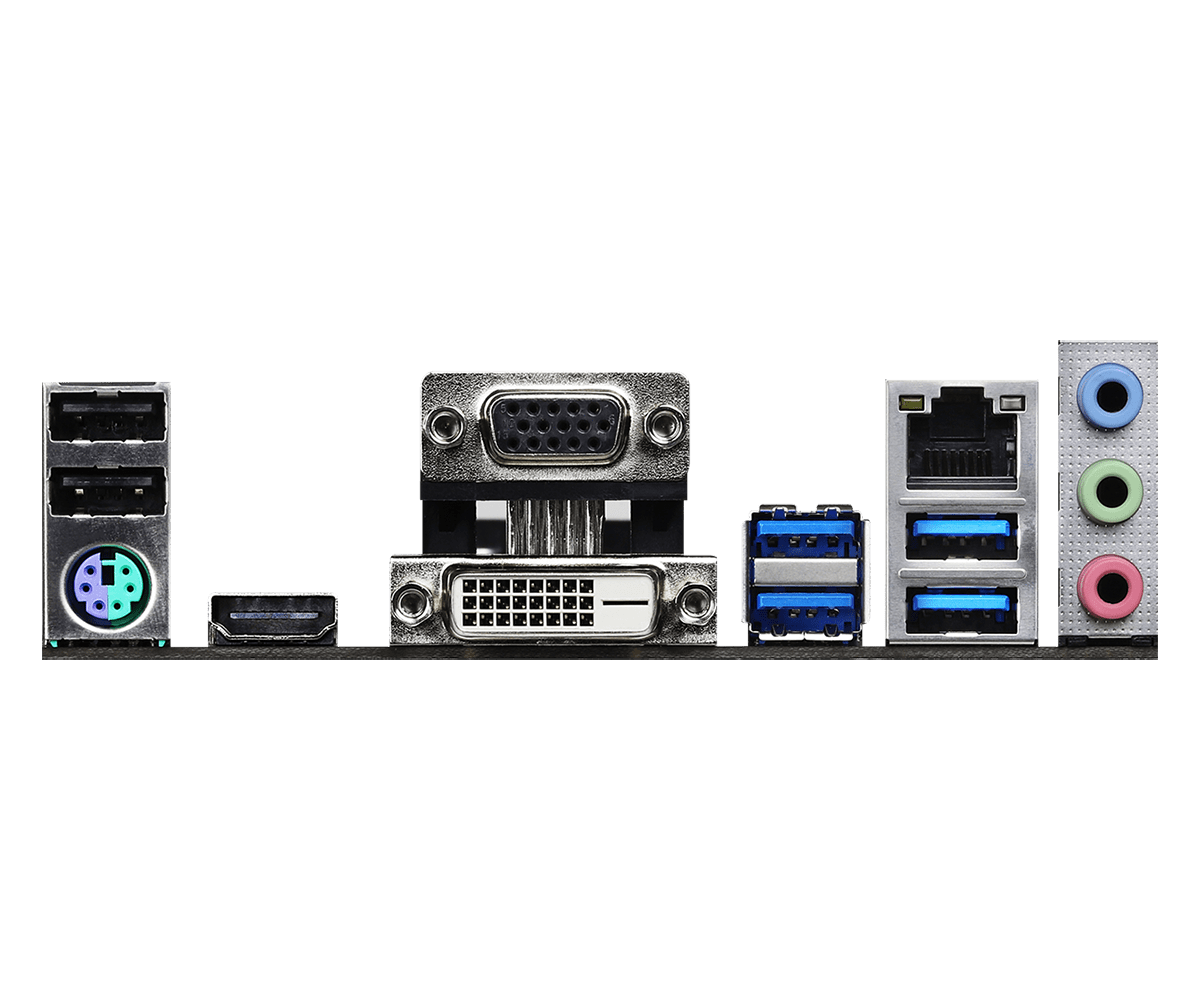

• Rear I/O:

  • 4 x USB 3.2 Gen1 Ports

  • 2 x USB 2.0 Ports

  • 1 x PS/2 Mouse/Keyboard Port

  • 1 x RJ-45 LAN Port

  • HD Audio Jacks
