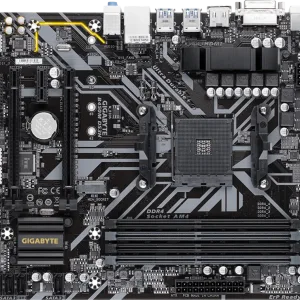

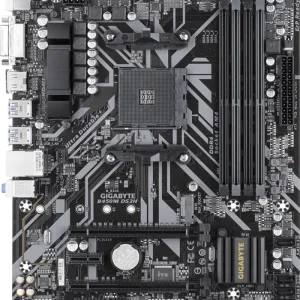

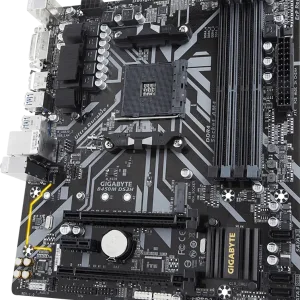

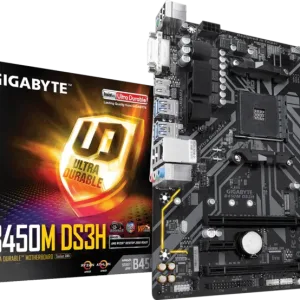

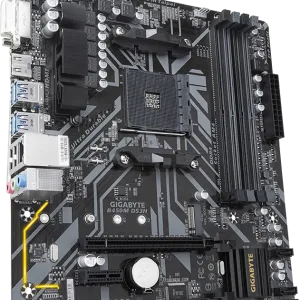

B450M DS3H GIGABYTE

GIGABYTE B450M DS3H Technical Specifications

• Chipset: AMD B450

• Form Factor: Micro ATX (24.4 cm x 21.5 cm)

• Socket: AMD AM4

• CPU Support: * Supports AMD Ryzen 5000 Series (including 5000 G-Series) with BIOS update.

  • Supports 3rd, 2nd, and 1st Gen Ryzen / Ryzen with Radeon Vega Graphics.

• Memory: * 4 x DDR4 DIMM Slots (Dual Channel).

  • Supports up to 128GB Max Capacity (Upgraded via latest firmware).

  • Supports speeds up to DDR4 3600(O.C.) / 3466(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz.

• Expansion Slots: * 1 x PCIe 3.0 x16 Slot (Running at x16).

  • 1 x PCIe 2.0 x16 Slot (Running at x4).

  • 1 x PCIe 2.0 x1 Slot.

  • Supports AMD Quad-GPU CrossFire™.

• Storage: * 1 x Ultra-Fast M.2 Socket (PCIe Gen3 x4 & SATA mode support, Type 22110).

  • 4 x SATA 6Gb/s Connectors (Supports RAID 0, 1, 10).

• Graphics Output: * 1 x HDMI 2.0 (4K @60Hz).

  • 1 x DVI-D.

• Networking: Realtek® GbE LAN with cFosSpeed Internet Accelerator.

• Audio: 7.1 CH HD Audio with High-Quality Audio Capacitors and Audio Noise Guard.

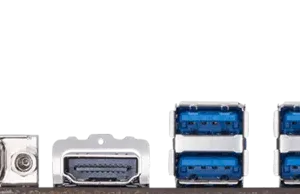

• Rear I/O Panel:

  • 4 x USB 3.1 Gen 1 Ports.

  • 4 x USB 2.0/1.1 Ports.

  • 1 x PS/2 Keyboard/Mouse port.

  • 1 x RJ-45 LAN Port.

  • 3 x Audio Jacks.
